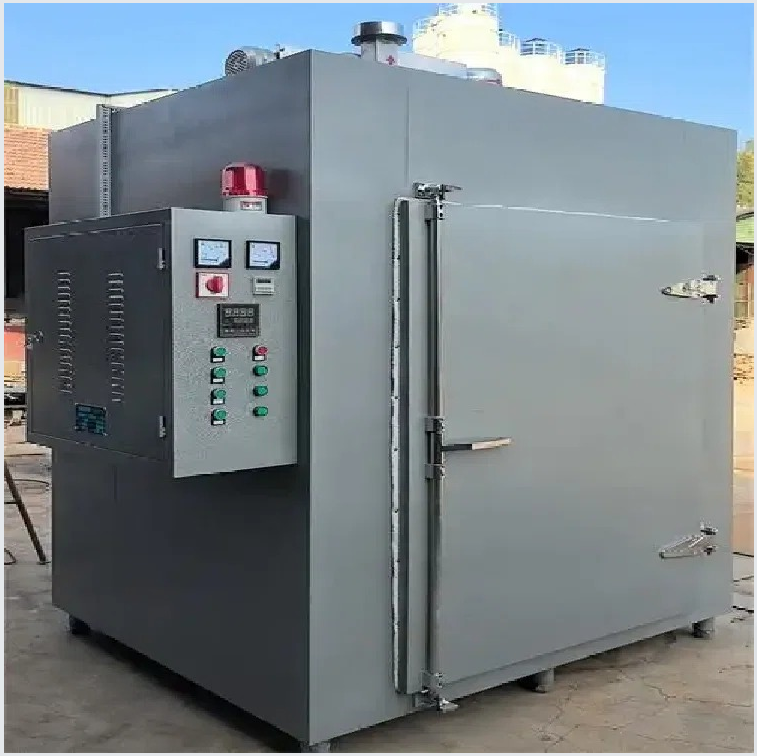

GMP medicinal oven

The medicinal GMP oven has three heating sources: steam, electricity, and dual-purpose electric steam. The temperature is automatically controlled and recorded by a recorder; The inner walls of the box are fully welded, and various transition points are rounded with no dead corners. The whole machine has good sealing performance, and the unique guide rail sealing device ensures the sealing performance of the whole machine; The air inlet is equipped with a high-efficiency air filter; The dehumidification outlet is equipped with a medium efficiency air filter.

Details Information

Product Description

◎ There are three types of heating sources: steam, electricity, and dual-purpose electric steam.

◎ Operating temperature: Steam heating 50-140 ℃, up to 150 ℃; Electric heating at 50-350 ℃;

◎ The temperature is automatically controlled and recorded by a recorder;

◎ The inner walls of the box are fully welded, and all transition points are rounded with no dead corners.

◎ The whole machine has good sealing performance, and the unique guide rail sealing device ensures the sealing of the whole machine;

◎ The air inlet is equipped with a high-efficiency air filter; The dehumidification outlet is equipped with a medium efficiency air filter.

◎ Double door oven with mechanical interlocking between two doors;

◎ All components inside the oven can be quickly disassembled and installed for easy cleaning;

◎ The control system is equipped with text displays and touch screens for selection;

◎ The whole machine meets the requirements of "GMP".

Structural schematic diagram

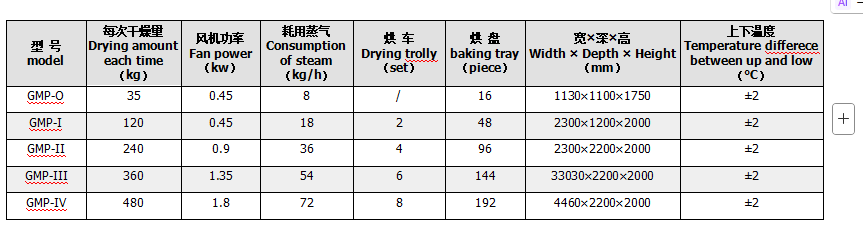

Technical specifications
