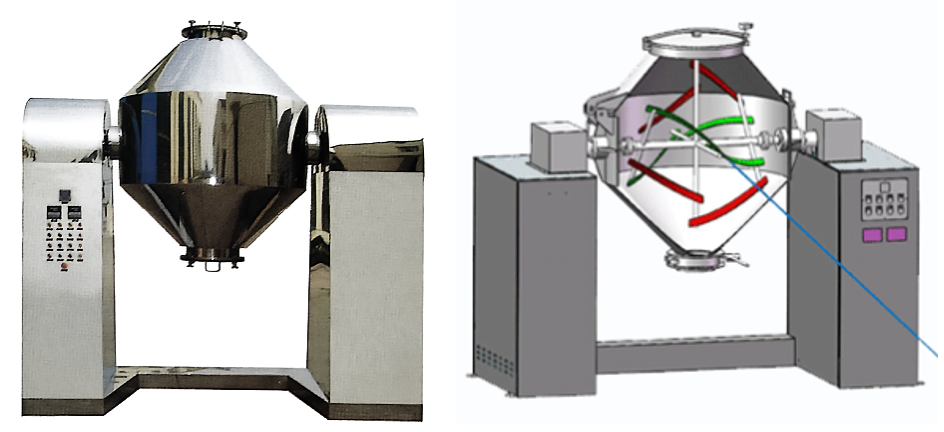

SZH series double-cone mixer

Structural features

● The double-tapered cylinder structure can change the flow direction of the material. The material slides and tumbles in the barrel for cross-mixing.
● This machine has little wear on materials and is suitable for mixing fragile materials.
● The machine is energy-saving, easy to operate, has low labor intensity and high work efficiency.
● A stirring device can be added inside the cylinder to improve the mixing intensity.
● According to needs, the double cone mixer can be changed to an eccentric square cone mixer, which can better change the material flow direction and increase the mixing effect.

Adapt to materials

This machine is suitable for mixing powdered and granular materials in industries such as pharmaceuticals, chemicals, food, and building materials.

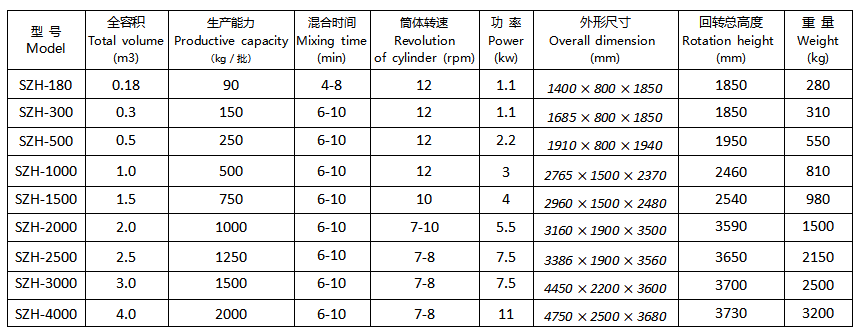

Technical parameters

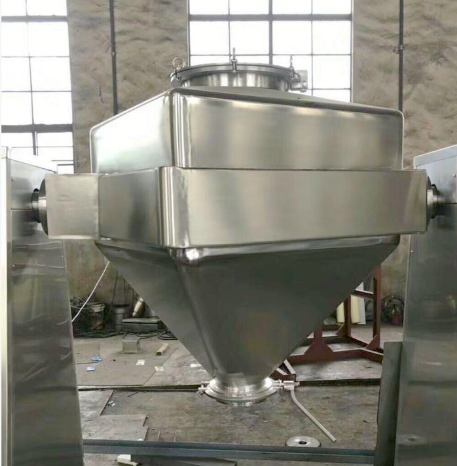

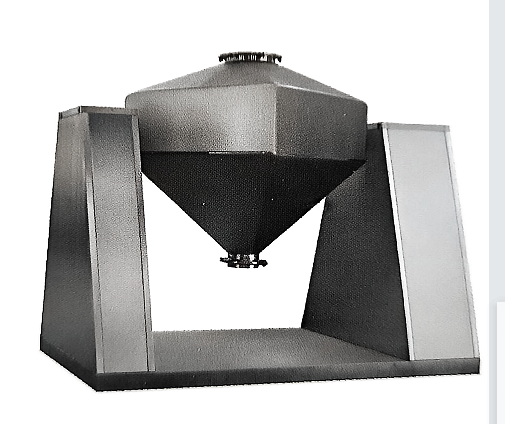

Square cone mixer

The square cone mixer is a new type of mixer developed and designed by changing the cylinder structure of the double cone mixer into a square structure. Now it is widely used in medicine, food, chemical industry, metallurgy, light industry, feed and other industries. This machine can mix powder and granular materials very evenly to achieve the best mixing effect.

Performance characteristics of square cone mixer

● The whole machine has novel design, compact structure, beautiful appearance, mixing uniformity of 99%, and volumetric charging coefficient of 0.8.
● Low rotation height, smooth operation, reliable performance and easy operation.
● The inner and outer walls of the barrel are mirror polished, with no dead corners, easy to unload, easy to clean, no cross-contamination, and comply with GMP requirements.Performance characteristics of square cone mixer
● The whole machine has novel design, compact structure, beautiful appearance, mixing uniformity of 99%, and volumetric charging coefficient of 0.8.
● Low rotation height, smooth operation, reliable performance and easy operation.
● The inner and outer walls of the barrel are mirror polished, with no dead corners, easy to unload, easy to clean, no cross-contamination, and comply with GMP requirements.

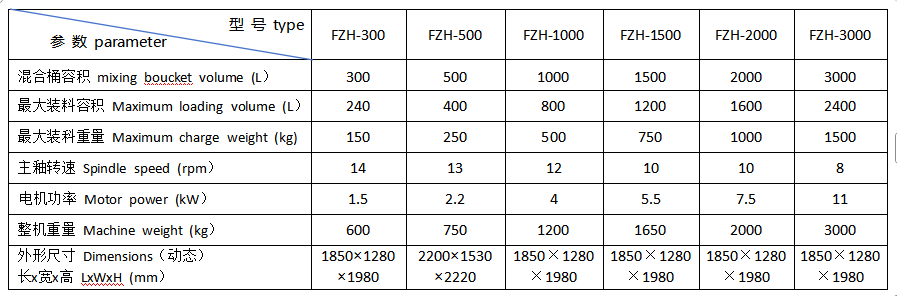

Technical parameters of square cone mixer
