Drying Equipment
-
MPG Inert Particle Fluidized Bed Drying MachineInert particle fluidized bed drying can replace spray drying in many occasions, and is suitable for drying solution materials. Compared with spray drying, it has higher drying intensity and can be dried with lower heat source temperature (such as low-pressure steam, waste hot water, etc.); Under the same conditions, the equipment scale is much smaller (its volume is generally only about 10% of that of the spray drying tower), the system floor area and height are significantly reduced, and the equipment investment is relatively low...read more -
HG series (single drum, double drum) rotary drum scraper dryerThe drum dryer is an internally heated conductive rotary continuous drying equipment. The rotating drum is adhered to a thick film through its lower chute, and heat is transported to the inner wall of the drum through pipes, conducted to the outer wall of the drum, and then transmitted to the film, causing the moisture in the film to evaporate, dehumidify, and dry the material containing moisture. The dried material is scraped off the drum surface by a scraper and placed on the scraperread more -
LZG series spiral vibration dryerWet materials enter the spiral bed from the top feeding port, and under the action of circumferential excitation force and gravity, the materials jump along the spiral bed from top to bottom until reaching the bottom layer; At the same time, clean hot air enters from the bottom of the spiral bed, undergoes sufficient heat and mass transfer with the materials distributed on the bed, and is discharged through the top dehumidification outlet. Thus achieving the purpose of drying the material.read more -
HZG series rotary drum dryerThe HZG rotary drum dryer is a cylindrical body with a slightly inclined main body and adjustable speed within a certain range. Wet materials are fed into the cylinder by a feeder, and under the flipping of a plate reader evenly distributed in the inner cylinder, the materials are evenly distributed and dispersed in the dryer and fully contact with the hot air (parallel or reverse) passing through the cylinder, accelerating drying heat and mass transfer. Thus achieving the purpose of drying. This device can use various forms of copying boards to adapt to...read more -
JYG series hollow blade dryerA blade type dryer is a low-speed stirring dryer that is equipped with a stirring slurry inside the equipment, allowing wet materials to fully contact the heat carrier and hot surface under the stirring of the blades, thereby achieving the purpose of drying. The structural form is generally horizontal, double axis or four axis. The blade dryer is divided into hot air type and conduction type. Hot air type refers to the process of drying a material by contacting it with a heat carrier (such as hot air) and drying itread more -
ZPG vacuum rake dryerZPG Vacuum Rake Drying Machine is a novel horizontal intermittent vacuum drying equipment. Wet materials are evaporated through conduction, and a scraper stirrer is used to continuously remove the materials on the hot surface, forming a circulating flow in the container. After the water evaporates, it is pumped out by a vacuum pump. This machine adopts a large-area interlayer heating method, with a large heat transfer surface and high thermal efficiency. It is equipped with agitation to form a continuous circulation state of the material in the cylinder, further improving the quality of the materialread more -
PLG series disc continuous dryerThe PLG series disc dryer is a continuous drying equipment mainly based on heat conduction, developed on the basis of intermittent stirring and conduction drying, using advanced technology and continuous improvement. It consists of multi-layer fixed hollow heating circular loading discs, stirring rake, and vertical fixed cylindrical body. The heat carrier is introduced into the hollow disc to indirectly heat the wet material on the disc surface through thermal conduction, and the rotating rake blade is used for scrapingread more -
GFG series high-efficiency boiling dryerThe working principle of the GFG series high-efficiency boiling dryer is that the air is heated and purified, and then introduced from the bottom by the induced draft fan, passing through the mesh plate of the hopper. In the studio, fluidization is formed through stirring and negative pressure, and the water evaporates rapidly and is carried away by the exhaust, resulting in rapid drying of the material.read more -
XF series horizontal boiling dryerBoiling drying, also known as fluidized bed, is composed of an air filter, heater, boiling bed host, cyclone separator, bag filter, high-pressure centrifugal fan, and control panel. Due to the different properties of the drying materials, when matching dust removal equipment, it can be considered as needed. Both cyclone separator and bag filter can be selected simultaneously, or one of them can be chosen.read more -

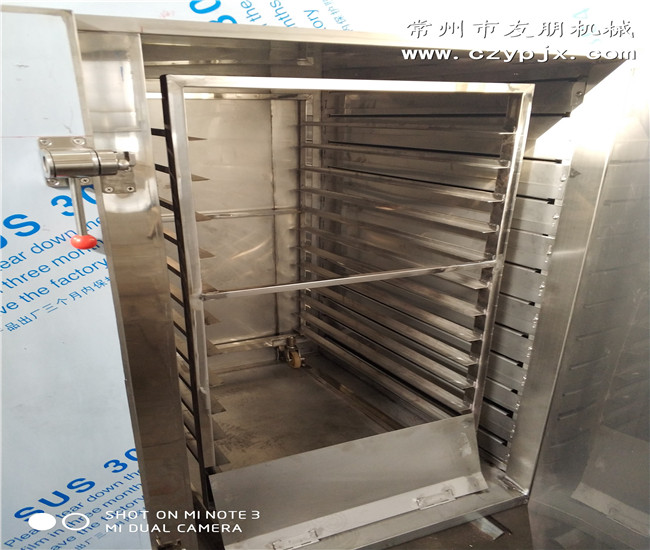

CT-C series hot air circulation ovenThe CT-C series hot air circulation oven is equipped with a low-noise and high-temperature resistant axial flow fan and an automatic temperature control system. The entire circulation system is fully enclosed, which increases the thermal efficiency of the oven from the traditional drying room 3-7% to the current 35-45%, and the high thermal efficiency can reach 50%. The successful design of CT-C type hot air circulation oven has enabled China's hot air circulation oven to reach domestic and international standards.read more -
YPG series pressure spray (cooling) dryerYPG series pressure type spray (cooling) dryer is a kind of equipment that uses pressure type atomizer to atomize solution or slurry materials into fine droplets with the pressure of diaphragm pump, so that the surface area can be significantly increased. After full heat exchange with hot air, it can be quickly dried (tens of seconds to tens of seconds) to obtain powder or fine particle products.read more -

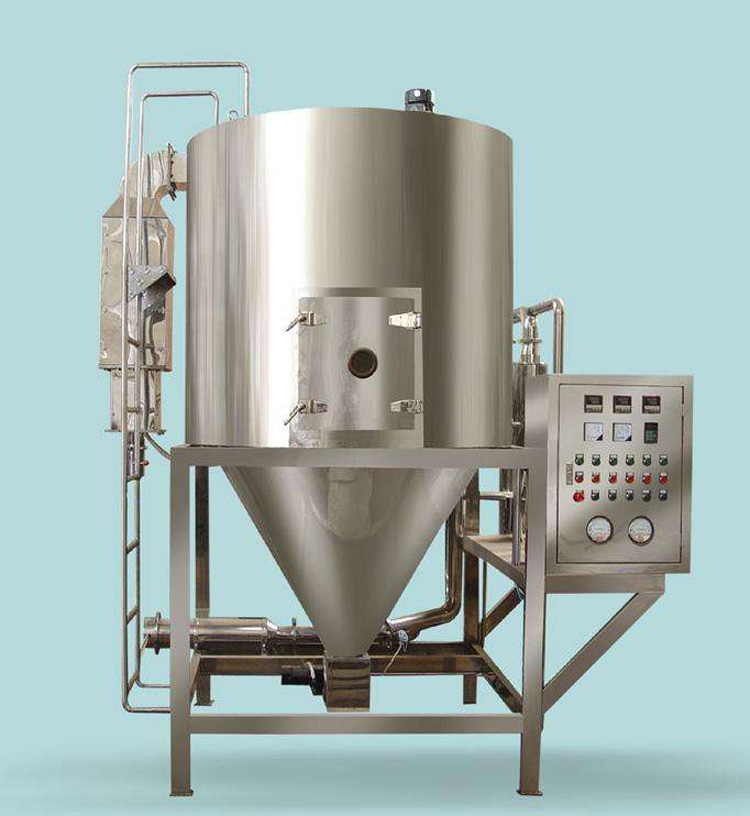

LPG Series High-Speed Centrifugal Spray DryerThe centrifugal spray dryer is named for its centrifugal atomizer. It is one of the widely used drying equipment in industrial production. The machine operates by adding liquid to a high-speed rotating dispersion disk, where the liquid is flung into droplets by centrifugal force and then dried within the dryer. On the surface of the dispersion disk, the liquid spreads out into a thin film and is thrown out at high speed at the peripheral edge. The atomization effect depends on the atomizing disk...read more
