Fluid bed dryer equipment

•
  MPG Inert Particle Fluidized Bed Drying Machine

  Inert particle fluidized bed drying can replace spray drying in many occasions, and is suitable for drying solution materials. Compared with spray drying, it has higher drying intensity and can be dried with lower heat source temperature (such as low-pressure steam, waste hot water, etc.); Under the same conditions, the equipment scale is much smaller (its volume is generally only about 10% of that of the spray drying tower), the system floor area and height are significantly reduced, and the equipment investment is relatively low...

  read more
•
  LZG series spiral vibration dryer

  Wet materials enter the spiral bed from the top feeding port, and under the action of circumferential excitation force and gravity, the materials jump along the spiral bed from top to bottom until reaching the bottom layer; At the same time, clean hot air enters from the bottom of the spiral bed, undergoes sufficient heat and mass transfer with the materials distributed on the bed, and is discharged through the top dehumidification outlet. Thus achieving the purpose of drying the material.

  read more
•

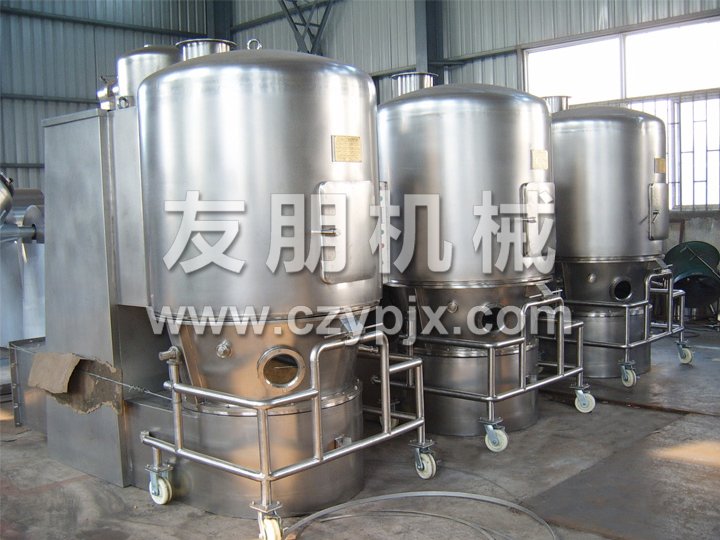

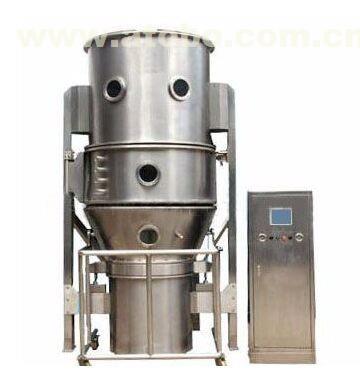

  GFG series high-efficiency boiling dryer

  The working principle of the GFG series high-efficiency boiling dryer is that the air is heated and purified, and then introduced from the bottom by the induced draft fan, passing through the mesh plate of the hopper. In the studio, fluidization is formed through stirring and negative pressure, and the water evaporates rapidly and is carried away by the exhaust, resulting in rapid drying of the material.

  read more
•
  XF series horizontal boiling dryer

  Boiling drying, also known as fluidized bed, is composed of an air filter, heater, boiling bed host, cyclone separator, bag filter, high-pressure centrifugal fan, and control panel. Due to the different properties of the drying materials, when matching dust removal equipment, it can be considered as needed. Both cyclone separator and bag filter can be selected simultaneously, or one of them can be chosen.

  read more
•

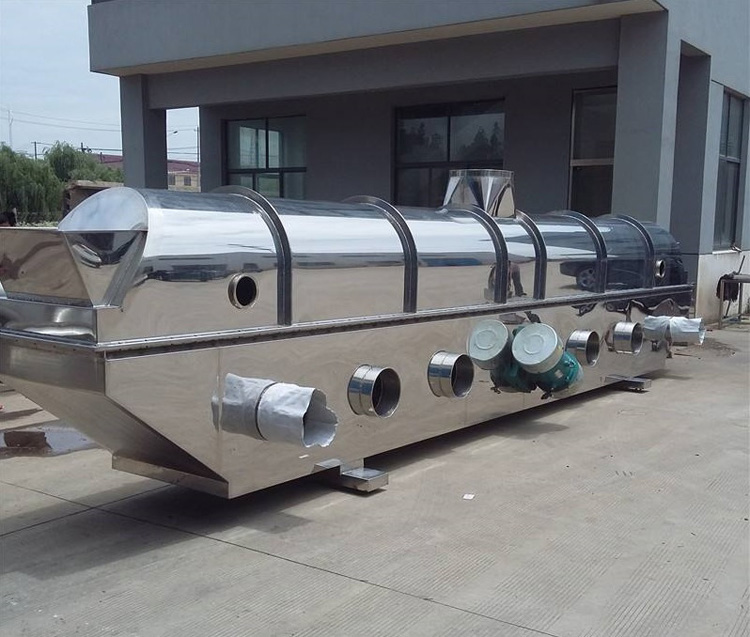

  ZLG Series Vibrating Fluidized Bed Dryer

  When the Vibrating Fluidized Bed Dryer operates, the material enters the dryer through the feed opening and, under the action of vibrational force and hot air, the material is tossed and jumps forward along the water bed surface. Hot air passes upward through the fluidized bed to fully exchange heat with the wet material, and the moist air, after dust removal by the cyclone separator, is exhausted by the exhaust fan. The dried material is discharged through the discharge outlet. This machine is suitable for the drying of powders in industries such as chemical, pharmaceutical, food, grain, and minerals.

  read more
