Product Introduction
DW series multi-layer belt dryer is a mass-produced continuous drying equipment used for drying sheet, strip and granular materials with good air permeability. It is especially suitable for dehydrated vegetables, catalysts, traditional Chinese medicine pieces and other materials with high moisture content and high temperature resistance. This series of dryers has the advantages of fast drying speed, high evaporation intensity, and good product quality. It can also be used for dehydration and drying of pasty materials such as filter cakes after granulation.
Application scope

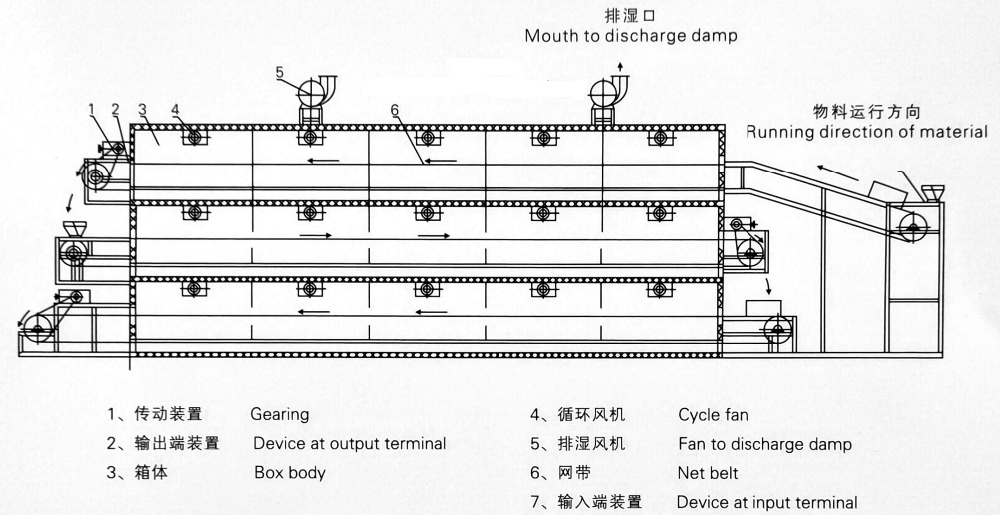

The DW series multi-layer belt dryer is suitable for large-scale production of difficult to dry materials with low drying rates. The equipment has a compact structure, small footprint, simple operation, easy maintenance, and stable operation. Different forms of hot air circulation drying can be designed according to the drying characteristics of materials, which is an extension and improvement of hot air circulation ovens, widely used in metallurgical additives, chemical industry, food, packaging and other fields. With the advancement of enterprise technology and the improvement of product technology content, multi-layer belt dryers have the ability to meet large-scale production, diversification, centralized control, and continuous production needs. It has the advantages of high efficiency, energy saving, and easy management.Structural schematic diagram

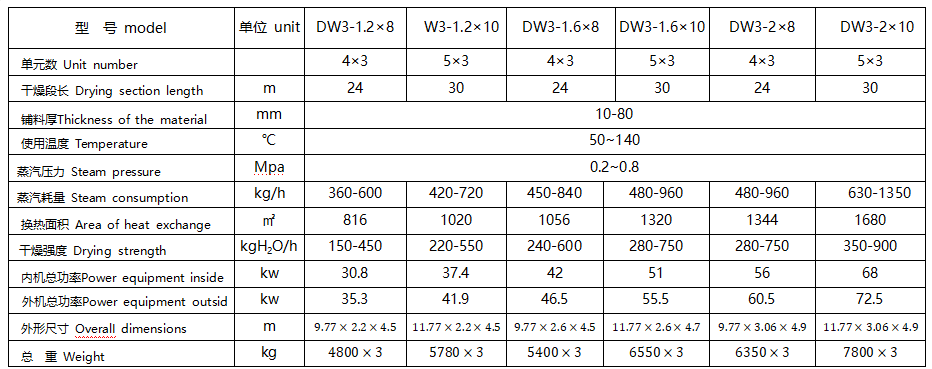

Technical parameters
注：干燥温度在250-350℃时，本公司将根据实际物料进行特殊设计。
Note: When the drying temperature is 250-350°C, our company will make special designs based on the actual materials.
