Granulator Equipment
-

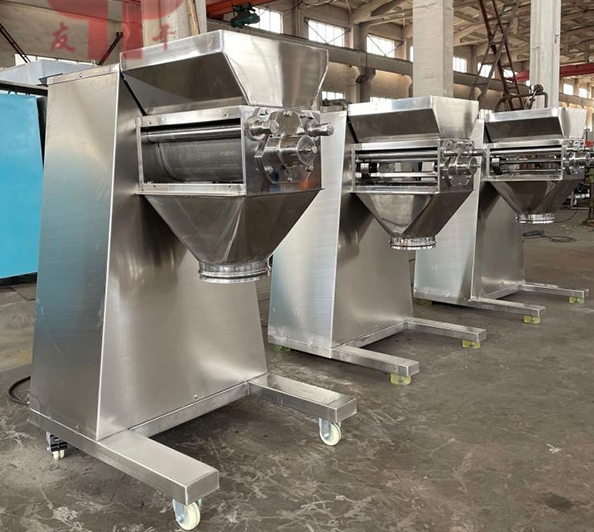

YK series swing granulatorThe YK series swing pellet machine is mainly suitable for manufacturing various specifications of pellets in industries such as medicine, chemical, and food. After drying, it is used to press various molded products. The machine can also be used to crush and condense dry materials into blocks. The material contact points are made of stainless steel material, which has the advantages of beautiful appearance, easy cleaning, simple operation, and low energy consumption.read more -
GHL series high-speed mixing granulatorThe GHL series high-speed mixing granulator is made by mixing powder materials and binders in a cylindrical container from the bottom into a wet soft material, which is then cut into uniform wet particles by a side mounted high-speed crushing blade.read more -

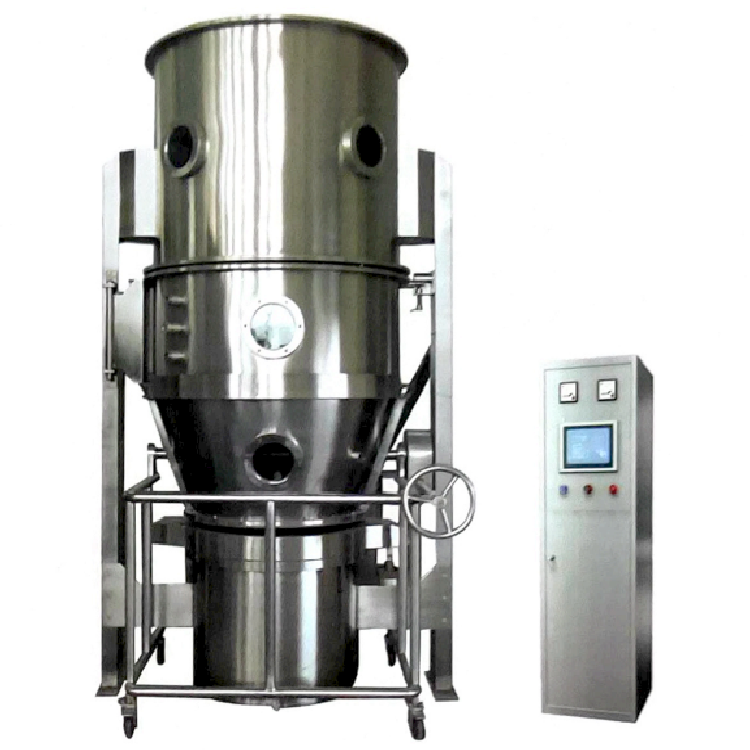

FL series boiling (granulation) dryerThe material powder particles are in a fluidized boiling state in the raw material container (fluidized bed). The purified hot air is fully mixed and preheated. At the same time, the binder solution is atomized and sprayed into the mixture through the atomizer, which causes multiple powder particles to aggregate and form particle clusters containing the binder. Due to the continuous drying effect of hot air on the material, the water in the agglomerated particles evaporates and the binder solidifies. This process is repeated until product requirements are met.read more -
PGL series spray drying granulatorThe spray drying granulator injects liquid raw materials under high pressure into the system via a diaphragm pump, forming mist-like droplets that are sprayed out. These droplets then come into contact with hot air for drying and fall in parallel flow. Most powder particles are collected from the discharge port at the bottom of the tower, while the exhaust gas and a small amount of powder are separated by a cyclone separator. A secondary dust removal device can also be equipped at the fan outlet, with a recovery rate of over 96%-98%.read more -
XZL series rotary granulatorThe ZLB rotary granulator is mainly used in industries such as pharmaceuticals, food, granules, chemicals, and solid beverages to make the required particles from stirred materials, especially suitable for materials with high viscosity. All parts of this machine that come into contact with materials are made of stainless steel, with a beautiful appearance, reasonable structure, high granulation forming rate, beautiful particles, automatic discharge, avoiding particle damage caused by manual discharge, and suitable for assembly line operation.read more -
GZL series dry mothod roll press granulatorExtrusion granulation is a relatively new dry granulation process commonly used in the production of compound fertilizers. It has been widely applied to the granulation of potassium chloride in the chemical fertilizer field. The granular potassium chloride (1-4mm) required for blended fertilizers (BB fertilizers) is mostly produced by extrusion method.read more -
RL series melting granulatorThe RL type granulator utilizes the characteristic that the melting point of the material is below 250 ℃. Based on the viscosity range of the material in the molten state, a special fabric device is used to evenly distribute the molten liquid on a steel strip that moves uniformly below it. Under the cooling effect of a continuous spray device set below the steel strip, the material is cooled, solidified, and packaged during transportation, thereby achieving the purpose of granulation and forming.read more -
KZL series rapid granulation (crushing) machineThe KZL series rapid granulator (pulverizer) is widely used in the pharmaceutical, chemical, and food industries with good results. This machine has a well-designed filter screen, rod, and can crush large and fragile materials. Based on the principle of centrifugal force, a special hole filter screen is used to carefully screen and grind solid particles while grinding large aggregates.read more
