Three-dimensional motion mixer--Chine Manufacturer and Supplier

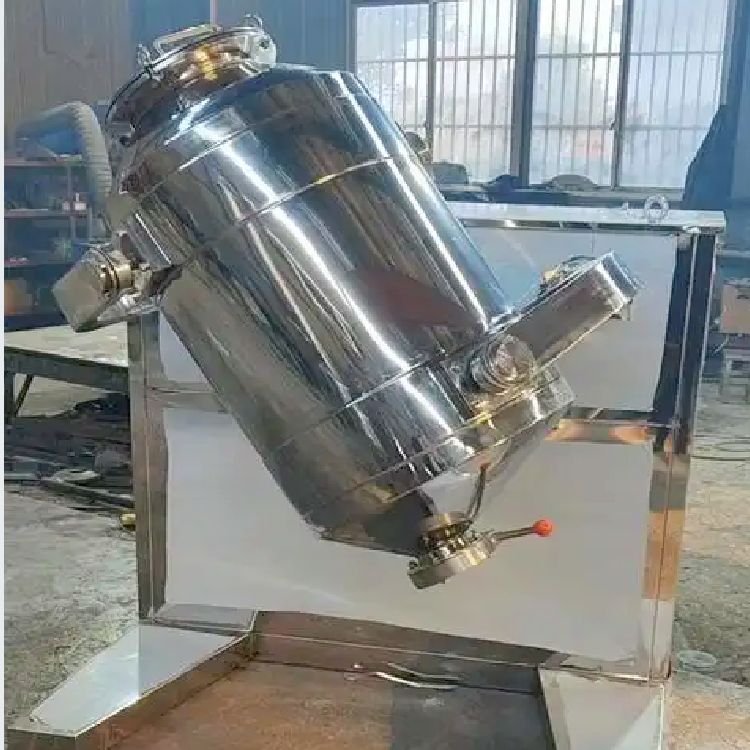

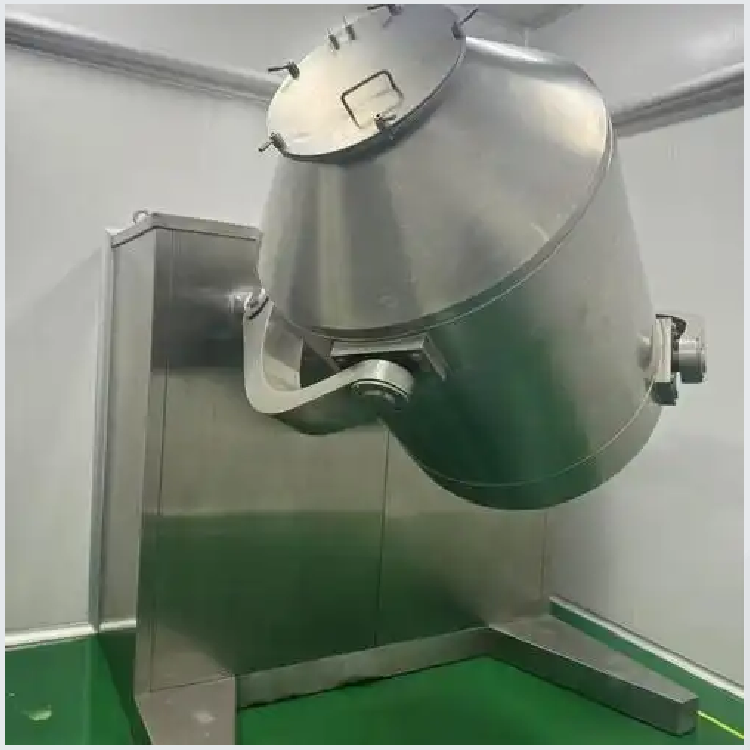

SYH Three-dimensional motion mixer

The SYH series 3D motion mixer, due to the multi-directional movement of the mixing barrel, has multiple cross mixing points for the materials inside the barrel, resulting in high mixing efficiency. The uniformity can reach over 99.9%, and the maximum loading coefficient can reach 0.9 (ordinary mixers have a coefficient of 0.4-0.6). The mixing time is short and the efficiency is high. The mixing barrel of this machine has a unique design, with the inner wall of the barrel finely polished, no dead corners, no pollution of materials, easy discharge, and cleaning

Send Inquiry

Performance characteristics

The cylinder of the material is driven by the active shaft to undergo a compound motion of translation, rotation, and rolling, which promotes the material to move in three directions along the cylinder, thereby achieving the mutual flow, diffusion, accumulation, and doping of various materials to achieve uniform mixing.

Adapt to materials

Used in pharmaceuticals, chemicals, food, light industry, electronics, machinery, mining and metallurgy, national
Prevent high uniformity mixing of powdered and granular materials from industrial and various scientific research institutions.

Performance characteristics

◆ The mixing cylinder of this machine moves in multiple directions, and the material has no centrifugal force, no specific gravity segregation, layering, or accumulation phenomenon. The weight ratios of each component can vary greatly, and the mixing rate is high. It is currently an ideal product among various mixers.

◆ The loading rate of the cylinder is high, reaching up to 90% (ordinary mixer is only 50%), with high efficiency and short mixing time.

◆ The various parts of the cylinder have rounded transitions and have undergone precision polishing treatment.

Structural schematic diagram

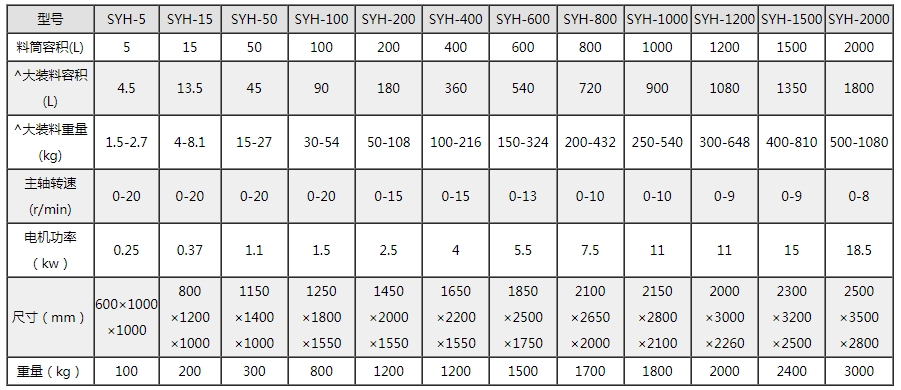

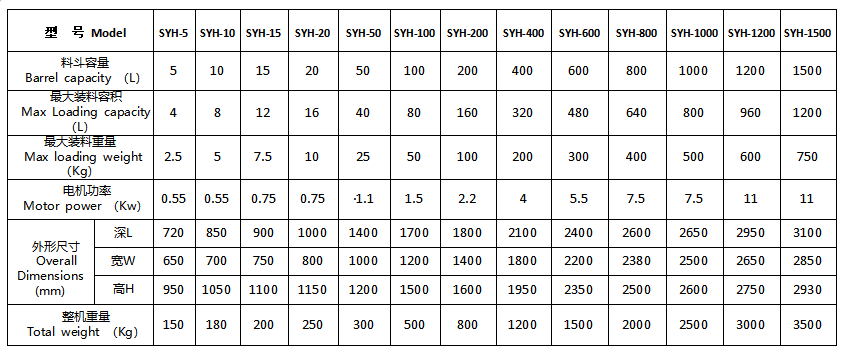

Technical specifications

Note: The specific gravity of material stacking is calculated at 0.6g/cm3. If it exceeds this limit, please indicate it when placing an order.
