Overview
The high-speed centrifugal spray drying unit for Chinese herbal medicine extracts is an application of centrifugal spray drying technology in the drying of specific materials. It uses a high-speed centrifugal atomizer to disperse the material into a mist, which then fully contacts hot air to complete instant drying, forming a powder product. The dedicated spray dryer for Chinese herbal medicine extracts is a spray dryer specifically designed to solve the spray drying problems of Chinese herbal medicine extracts and plant extracts.

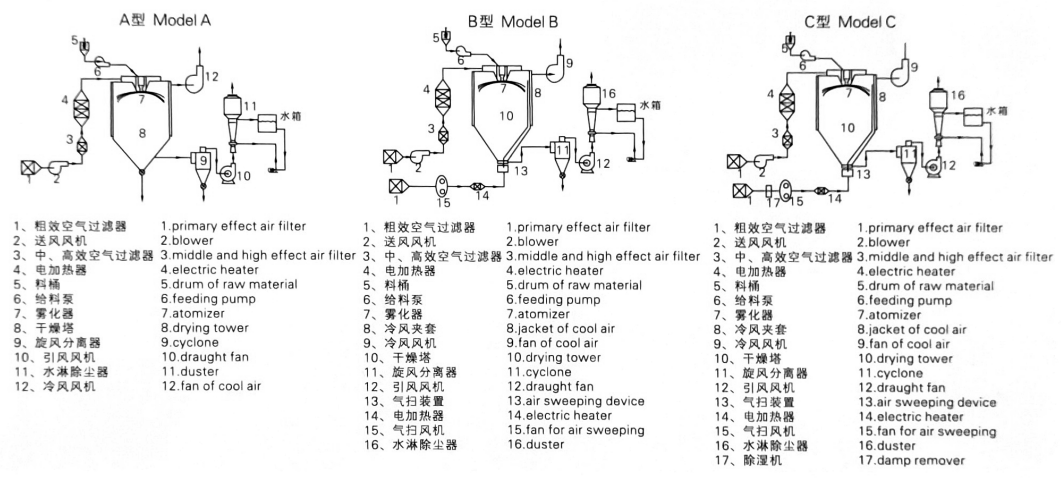

Structural Schematic Diagram
Product IFeatures
This machine is fully enclosed, with all components made of stainless steel and equipped with a three-stage purification device, ensuring that the filtered air meets the requirement of 100,000 grade. The cylinder and the top are fitted with a cold wall device to keep the wall temperature below 80°C, and the drying tower is equipped with an air brushing device for sweeping the tower. The TCM extract powder dried by this machine will not experience charring or deterioration, significantly increasing the powder collection rate (over 95%), and will not result in cross-contamination or wall adhesion.
Working Principle
The high-speed centrifugal spray drying unit for TCM extracts applies centrifugal spray drying technology to the drying of specific materials. It uses a high-speed centrifugal atomizer to disperse the material into a mist, which then comes into full contact with hot air, completing instant drying to form a powdered finished product.
Performance Features
1. The tower body has a cold air jacket;
2. The tower is equipped with an automatic vibration device;
3. The tower and pipelines have quick-opening cleaning holes and discharge holes;
4. Can be equipped with an automatic temperature-controlled feeding tank;
5. Can be equipped with manual high-pressure tower washing as an optional accessory;
6. Parts in contact with the material are made of stainless steel; (or fully stainless steel construction);
7. Material collection is done using a two-stage cyclone dust removal device, or a first-stage cyclone dust remover and a wet dust remover;
8. Inlet air temperature is automatically controlled and continuously adjustable;
9. Can be equipped with an air-sweeping device.

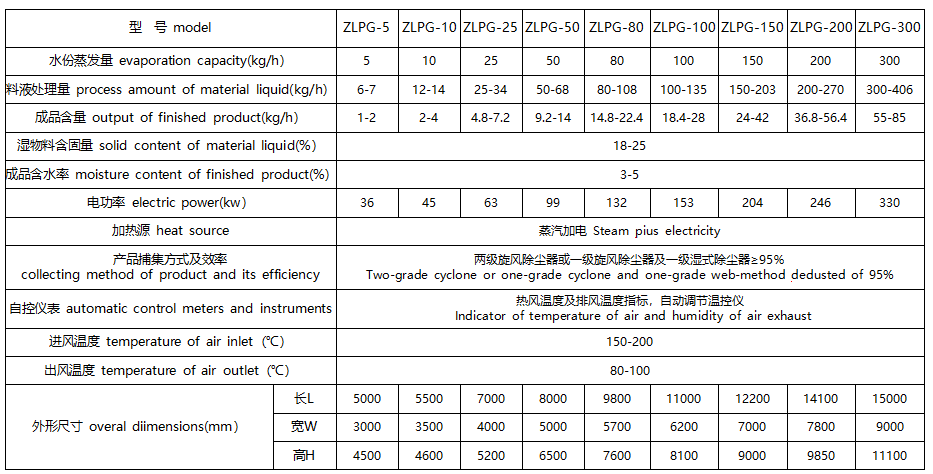

Technical Specifications
Note: * Actual exterior dimensions can be determined based on the customer's actual situation; the above dimensions are for reference only.
* The evaporation rate mentioned is the maximum evaporation rate.
